Metal 3D Printers - Trial Case Studies Blades
| Trial case study | Blades |
|---|---|
| Fields of application (examples) |
Aerospace, Energy |
| Devices of application (examples) |
Turbine blades, Compressor blades |

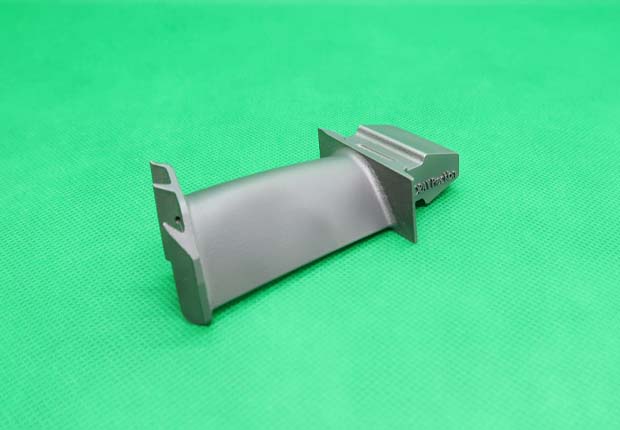

| Material of the sample in the photo |
Inconel 718 |
| Size of the sample in the photo |
40㎜××25㎜×L90㎜ |
| Manufacturing process | Metal 3D printer |
| Features | Complex shapes of airfoils can be made directly from 3D models. |

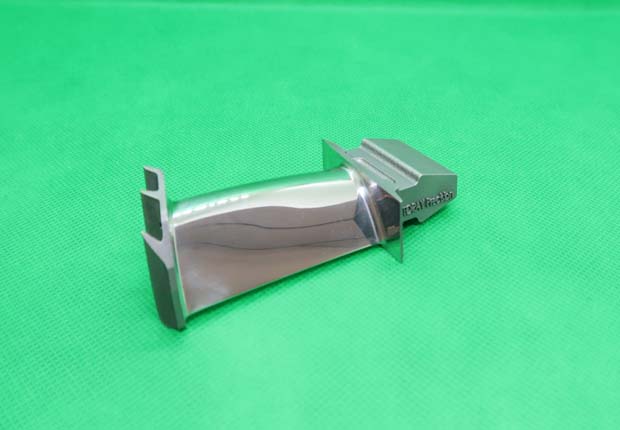

| The mirror surface polishing for the airfoils are Ra0.05μｍ. | |
| Cooling fluid channels can be made inside the blades. | |
| Pressure measurement of the airfoil surface is possible by making a hole on the surface which works as a flow channel. | |
| Measurement of airfoil shapes are supported. |
Related cases
Porous nozzle
Air spindle, Air bearing
ProbesMetal 3D Printers - Our Services
- We offer one-stop services including the secondary processing such as surface finishing.
- High precision finishing with our precision machining technologies.
- The parts and the products are ready-to-use at arrival.
- We conduct verifications beforehand to reduce the risks of failure, using Simufact Additive, a software solution of MSC for the simulation of the processes.
- Trial pieces are available from 1 piece. Mass production is supported as well.
