Metal 3D Printers - Trial Case Studies Probes



Trial case study	Probes
Fields of application (examples)	Aerospace, Automobile, Machinery, etc.
Devices of application (examples)	Pressure mesuraing probes, Pitot tubes, Temperature measurement probes, Rakes, Gas sampling probles

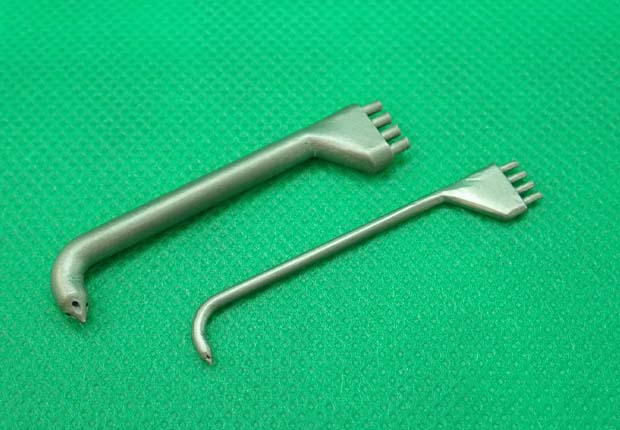

Material of the sample in the photo	Inconel 718

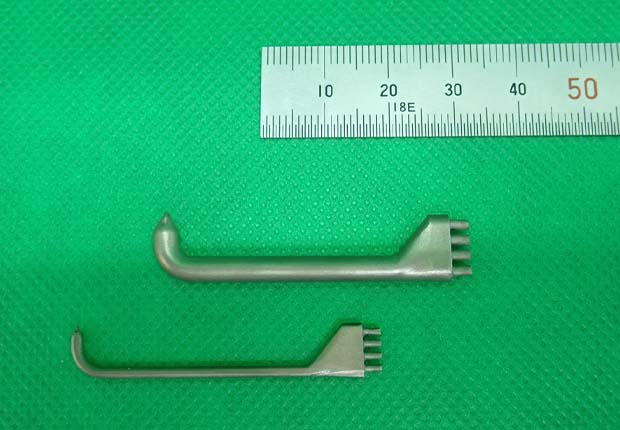

Size of the sample in the photo	ODφ1.8㎜×L45㎜、ODφ4㎜×L45㎜
Manufacturing process	Metal 3D printer
Features	Several flow channels can be put together for measuring slobes by metal 3D printers.
	The shapes are highly accurate comparing to handcrafted versions.
	Inconel 718 is supported which has good heat/corrosion resistance.
	Flow channels can be made flexibly inside a part with metal 3D printers. It is also possible to make internal flow channels for the purpose of measuring fluid characteristics for blades, which is useful for simulation and verification.
	Gas mixture sampling is possible. Probes with accurate dimentions even allow you to see mixing ratio of each area.

Related cases

• Pump casing
• Porous nozzle
• Air spindle, Air bearing

Metal 3D Printers - Our Services

• We offer one-stop services including the secondary processing such as surface finishing.
• High precision finishing with our precision machining technologies.
• The parts and the products are ready-to-use at arrival.
• We conduct verifications beforehand to reduce the risks of failure, using Simufact Additive, a software solution of MSC for the simulation of the processes.
• Trial pieces are available from 1 piece. Mass production is supported as well.
