Dispenser nozzles

  • Empty
  • Empty
  • Empty
  • Empty

Fiber-spinning nozzle machining technology used to design / produce nozzles suited for a number of applications and liquid formulations

Dispenser nozzles are used in many applications. Depending on their purpose, they may have to deal with differing precision levels or liquid viscosity.
High-quality, precision nozzles are a must to prevent coating scatter.
Toray Precision has built a long history of high-tech nozzles for spinning synthetic fibers. It now uses this history to answer any and all customer needs.

Applications

  • Semiconductors
  • Electronics

Features

  • Design and machining is performed with the viscosity and surface tension of the coating in mind to improve injector precision.
  • Holes can be machined in a variety of shapes, including circular, formed, and pipe-shaped.
  • Multi-nozzles with multiple coating points are also supported.

Product machining examples

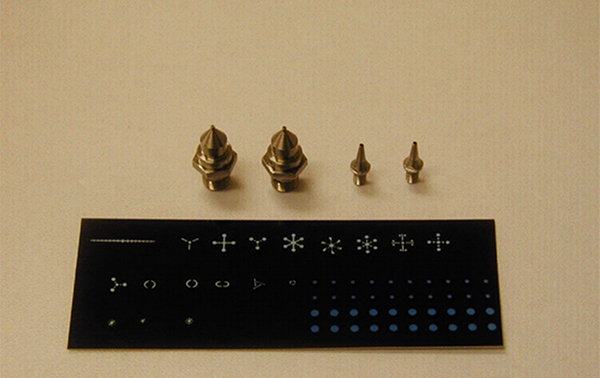

Precision nozzles

  • Formed holes：Produced to customer specs
  • Round holes：⌀0.003-⌀1.0 mm
  • Coating points：1-5 or more
  • Material：SUS hardened steel

Pipe nozzles

  • Formed holes：Produced to customer specs
  • Round holes：Φ0.05～Φ1.0mm
  • Coating points：1-5 or more
  • Material：SUS hardened steel

The main technologies used for this product are here

Please consult in such a case

Toray Precision’s solution
