Design and manufacturing of spinning nozzles for synthetic fibers, developed through years of advanced technology

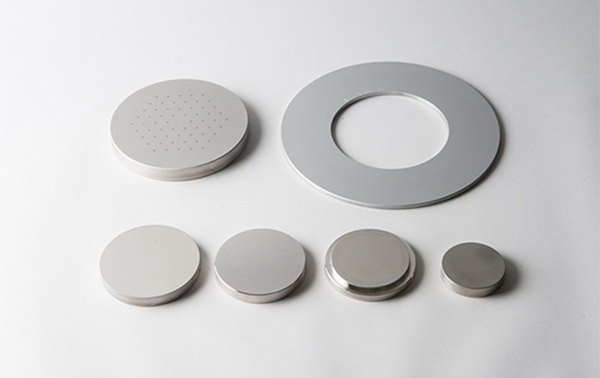

Spinning nozzles are a key technology in the production of synthetic fibers. Our advanced technology and superior production equipment have allowed us to produce high-precision, high-quality spinning nozzles for synthetic fibers for over half a century. They support the quality of all Toray's synthetic-fiber products.
Applications
- Nozzles for spinning macromolecule (polymer) materials
A required part of manufacturing synthetic fibers
Features
- Our nozzle design and production takes advantage of the performance, viscosity, and other features of the polymers used to form synthetic fibers.
- In addition to circular, we support a wide range of hole shapes.
- We provide designs to meet customer requests, including hollow-fiber and texture-specific forms.
- Mirror and lacquer-style surface finishing available on request.
- Toray Precision nozzles are used in all of Toray’s fiber production.
Product machining examples
-
Output hole shapes
Material
| JIS | SUS316 | SUS316L | SUS304 | SUS420J2 | SUS630 |
|---|---|---|---|---|---|
| AISI | 316 | 316L | 304 | 420J2 | 630 |
Surface finish
| Mirror finish | 0.02-0.04 S |
|---|---|
| Lacquer-style finish | 0.4-0.8 S |

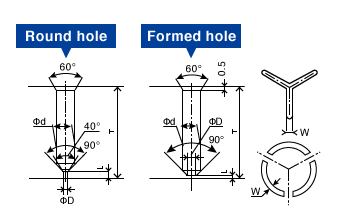

Precision
Round hole
| Range of Capirally | Tolerance | ||||
|---|---|---|---|---|---|
| D | L/D | D | L | ||
| Special | Standard | Special | Standard | ||
| 0.1～0.3 | 1/1～3/1 | ±0.001 | ±0.002 | ±0.01 | ±0.02 |
| 0.3～0.5 | 1/1～4/1 | ±0.001 | ±0.003 | ±0.01 | ±0.02 |
| 0.5～0.8 | 1/1～10/1 | ±0.002 | ±0.003 | ±0.02 | ±0.03 |
| 0.8～1.0 | 1/1～20/1 | ±0.002 | ±0.005 | ±0.02 | ±0.03 |
Formed hole
| Range of Capirally | Tolerance | ||||
|---|---|---|---|---|---|
| W | L/W | W | L | ||
| Special | Standard | Special | Standard | ||
| 0.05～0.1 | 1/1 ～ 4/1 | ±0.001 | ±0.003 | ±0.01 | ±0.03 |
| 0.1～0.5 | 1/1 ～ 5/1 | ±0.002 | ±0.004 | ±0.015 | ±0.03 |
