Micro-holes and narrow-pitch machining creates vacuum plates for soft workpieces that leave few marks
When film or flexible sheet-type workpieces need to be kept in place with suction, there need to be no wrinkles or suction marks, and the piece must remain fully stationary.

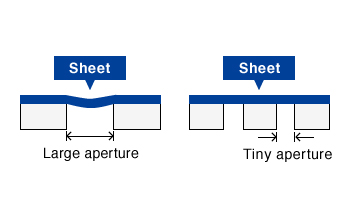

Toray Precision’s micro-hole machining technology allows for the placement of tiny holes at narrow pitches, keeping the workpiece from bending.
Applications
- Fixing plastic film in place
- Fixing ceramic sheets in place
- Screen printing
- Pick-up-and-place units
Features
- Machining of holes several dozen µm wide (10-50 µm) with high positional accuracy
- Suppresses suction marks on film
- Micro-holes keep film in place with suction and prevent dent marks
- Fast installation and removal
- Little pressure loss and fast on / off suction compared to porous materials
- Freely definable suction region
- Can handle order-made, no-suction areas
- Easy maintenance
- Clogs can be removed with washing for superior maintainability*
- Uniform suction force prevents twisting of workpieces
- * Uniform suction force prevents twisting of workpieces
Product machining examples
- Hole diameter：10-50 µm
- Pitch：20µm
